Major project / autonomous systems
Autonomous maze
solving bot.
A compact mobile robot that senses walls, builds a map, and navigates a grid maze with no remote control.
01
Grid world
structured maze
02
Flood-fill
adaptive planner
03
ESP32
real-time control
04
2-wheel
differential drive
03 / algorithm

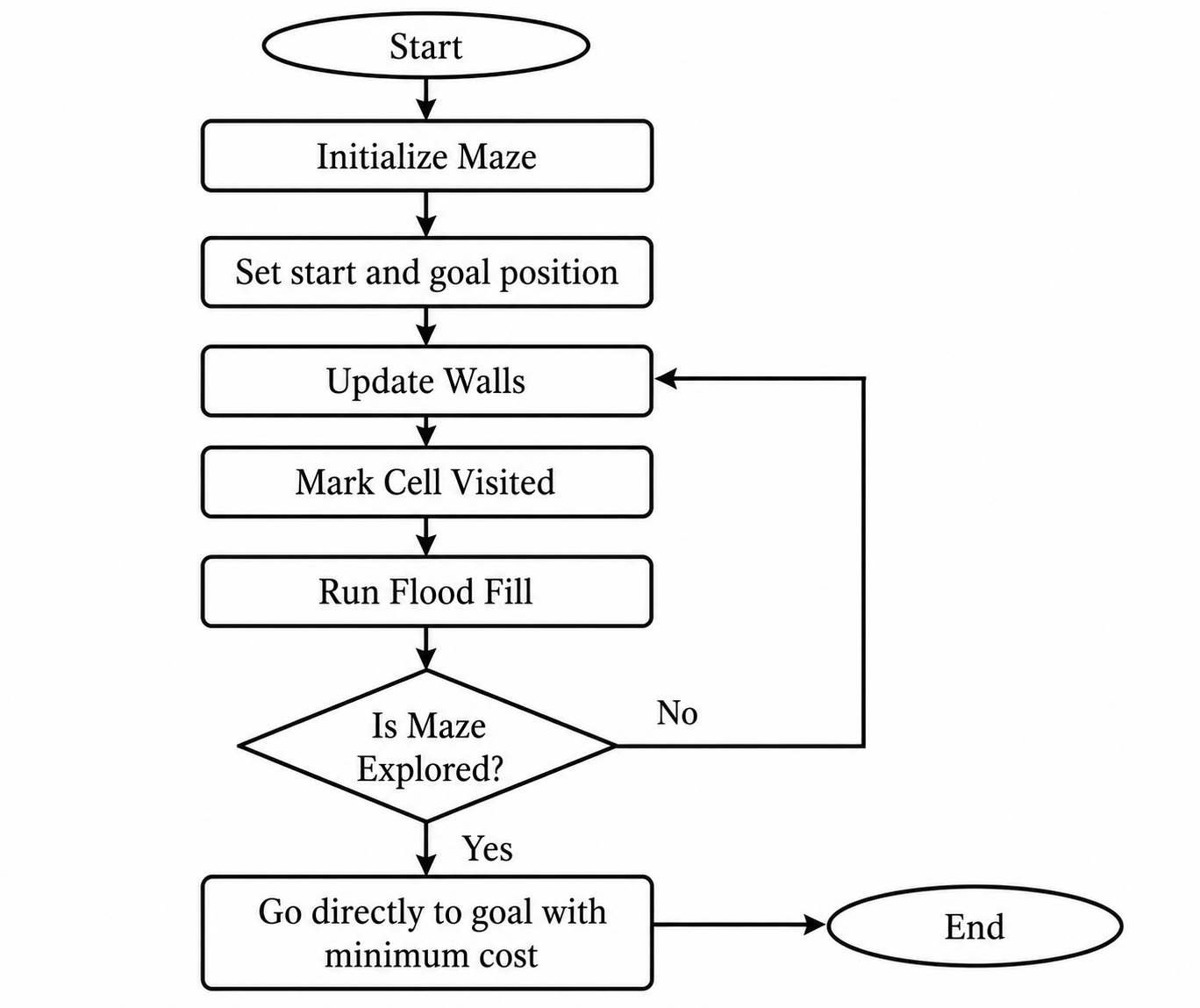

Explore first. Then run the shortest path.
The firmware is a two-state navigation engine: EXPLORING discovers the maze, then GOING_TO_GOAL follows a fresh distance map to the target. A final FINISHED state stops the motors.
01
Detect
front / left / right
02
Recompute
BFS from target
03
Move
lowest valid cost
firmware logic / C++
updateDistances(targetX, targetY);
int bestDir = -1;
int minVal = 255;
// Prefer continuing straight
if (!walls[x][y][currentOrient]) {
int nx = x + dx[currentOrient];
int ny = y + dy[currentOrient];
if (distMap[nx][ny] < distMap[x][y]) {
bestDir = currentOrient;
minVal = distMap[nx][ny];
}
}
// Otherwise choose the best neighbor
for (int d = 0; d < 4; d++) {
if (!walls[x][y][d]) {
int nx = x + dx[d];
int ny = y + dy[d];
if (distMap[nx][ny] < minVal) {
minVal = distMap[nx][ny];
bestDir = d;
}
}
}State machine
EXPLORING mark cells, detect walls, seek the nearest unvisited cell.
GOING_TO_GOAL navigate toward goalX = 1, goalY = 1.
FINISHED stop both motors after arrival.
Movement policy
- Wall map: addWall() writes both sides of every wall.
- Turning: faceDirection() resolves 90° or 180° changes.
- Cell travel: moveOneCell() uses IR correction and encoder pulses.
05 / hardware
Built for feedback, not spectacle.

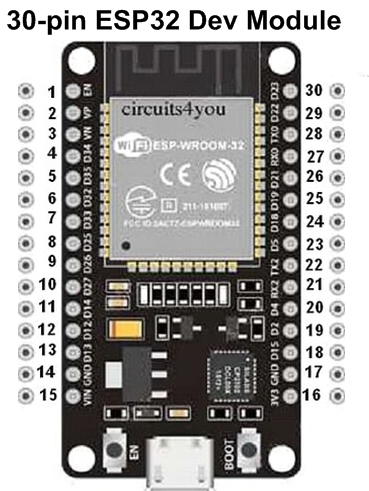

The platform pairs an ESP32 with IR wall sensors, encoder-equipped N20 motors, a motor driver, and a caster wheel. The electronics keep the signal path short and the mechanical footprint compact.
- ESP32 microcontroller
- IR sensor module × 3
- N20 encoder motors × 2
- Motor driver + battery supply
- Differential wheels + caster
03 / testing & calibration
Calibration is part of the algorithm.
Sensor thresholds are tuned against wall distance, while motor timing and encoder feedback are checked for straight motion and repeatable 90-degree turns. Tests progress from isolated actions to full-maze runs.
Validation sequence
